32-Channel PIR Sensor LED Stair Lights Controller

Product Feature
  • PIR sensor stair light controller with daylight sensor.
  • 32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
  • 2 groups SPI(TTL) signal output drive 27 kinds IC digtial RGB LED strip, IC type and R/G/B order can be set.
  • Compatible ICS: TM1803, TM1804, TM1809,TM1812, TM1903,UCS1909,UCS1912.UCS2903,UCS2909,UCS2912,WS2811,WS2812,TM1829,TM1914A,GW6205.GS8206,LPD6803, LPD1101, D705,UCS6909,UCS6912,LPD8803,LPD8806,WS2801,WS2803,P9813,SK9822.
  • Easy operation with OLED display and 3 buttons.
  • Four work light mode selectable.
  • Two stair light controller can cascade.
  • Built-in multiple color mode, speed 1-8 grade adjustable.
  • Push switch can also be as induction signal input.
  • With fast self-testing function.
Product Description

This led product is a PIR sensor stair light controller for DIY stairway lighting, suitable for stair lights indoor decor. The motion sensor stair lights can automatically get the human body induction, and then automatically turn on the stair lighting, after a few seconds, the staircase lighting will disappear, it is an intelligent stair lighting system. This ES32 controller for stairway lights supports control 32 groups of single color led stair lights and 2 groups of addressable dream color staircase lights. The stair light mode can be set.
You can select the options to get a complete led stair lighting kit, including COB led strips, an ES32 controller with two PIR sensors, a power supply, an AC plug, extension cords to connect the led step lights and the controller, aluminum channel to protect the stair lights or not.

Technical Parameters
  • Input Voltage: 5-24VDC
  • Output Voltage: 32*(5-24)VDC
  • Output Power: 32*(5-24)W
  • Output current: 32CH,1A/CH
  • Output type: Constant voltage+SPI(TTL)
  • Operation Temperature:-30?~+55?
  • Case temperature(MAX.): Tc:+85?
  • IP rating: IP20

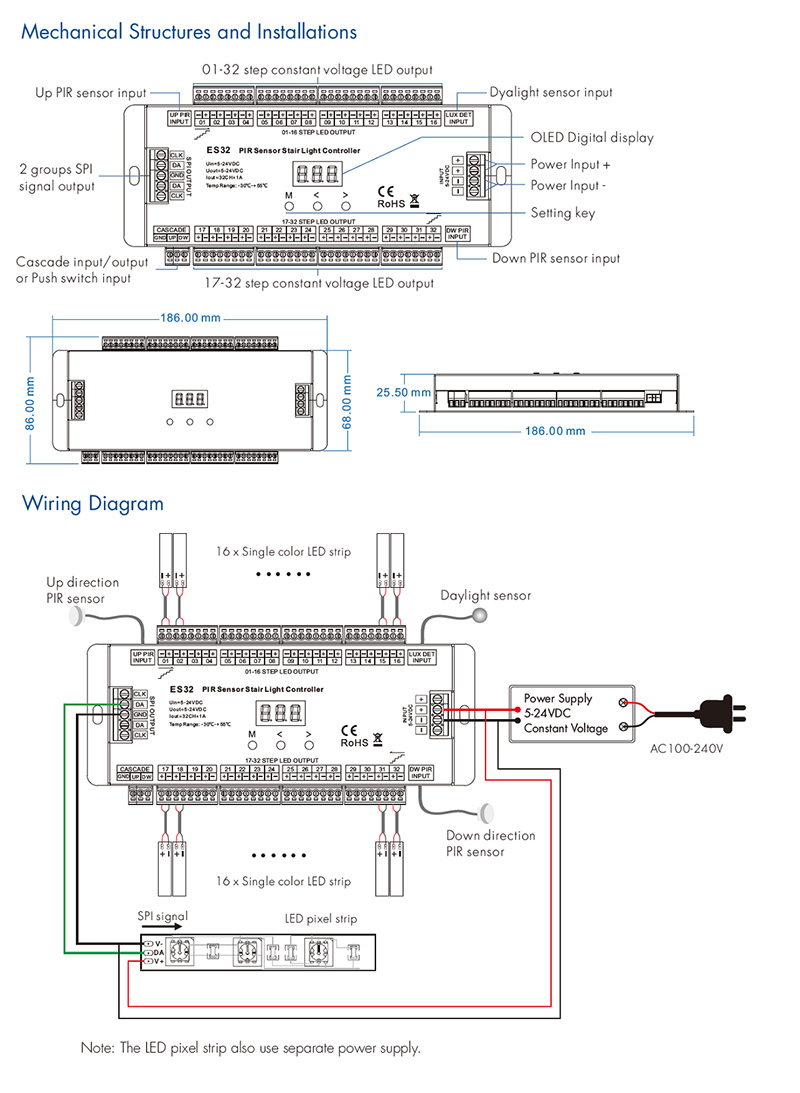

How to Install PIR Motion Sensor LED Stair Light Kit?
1) Color flow LED stair lighting;
2) Step-by-step staircase lighting;
3) Stair light step-by-step and color flow.
